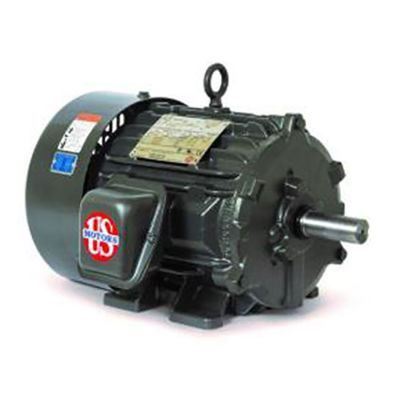

Three Phase - TEFC - Rigid Base 5 HP 1800 RPM 184T
SKU: HD5P2E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

5 HP      1800 RPM        184T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

5 HP      1800 RPM        184T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 5
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
NEMA Frame 184T
"C" Dim (inches) 16.3
Ship Wt. 100
NEMA Nom. Eff 89.5
Full Load Amps 12.7/6.3
