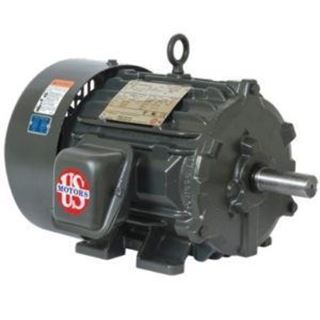

Three Phase - TEFC - Rigid Base 100 HP 1800 RPM 405T
SKU: HD100P2E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

100 HP      1800 RPM       405T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

100 HP      1800 RPM       405T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
HP 100
NEMA Frame 405T
"C" Dim (inches) 37.7
Ship Wt. 980
NEMA Nom. Eff 95.4
Full Load Amps 229/115
