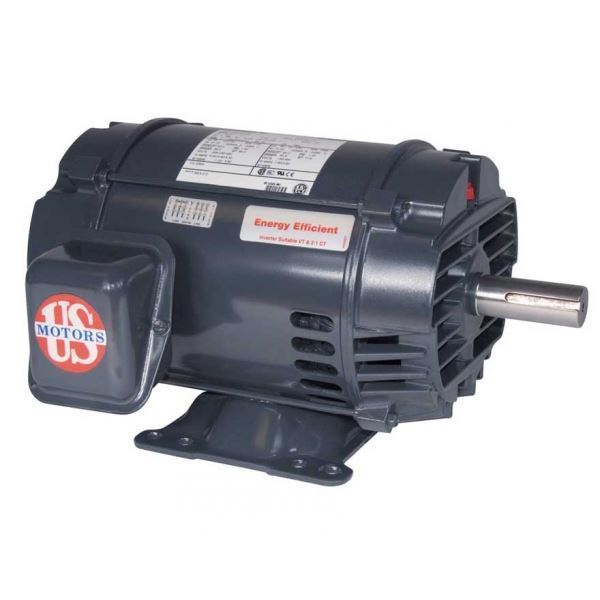

Three Phase - ODP - Rigid Base 10 HP 1200 RPM 256T
SKU: D10P3D
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

10 HP      1200 RPM      256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

10 HP      1200 RPM      256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 256T
HP 10
"C" Dim (inches) 21.0
Ship Wt. 160
NEMA Nom. Eff 91.7
Full Load Amps 27.2-25/12.5
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 256T
HP 10
"C" Dim (inches) 21.0
Ship Wt. 160
NEMA Nom. Eff 91.7
Full Load Amps 27.2-25/12.5
