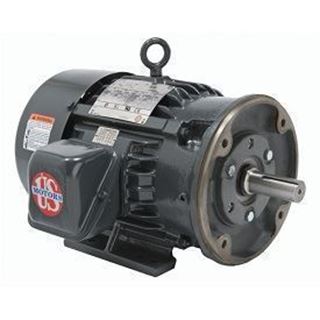

Three Phase - TEFC - C Face with Base 15 HP 3600 RPM 254TC
SKU: HD15P1EC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
15 HP    3600 RPM       254TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
15 HP    3600 RPM       254TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 254TC
"C" Dim (inches) 25.4
Ship Wt. 260
NEMA Nom. Eff 91.0
Full Load Amps 35/17.4
SYN RPM 3600
HP 15
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 254TC
"C" Dim (inches) 25.4
Ship Wt. 260
NEMA Nom. Eff 91.0
Full Load Amps 35/17.4
SYN RPM 3600
HP 15
