*Images may not represent actual products.

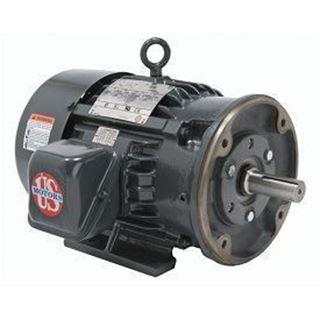

Three Phase - TEFC - C Face with Base 30 HP 1800 RPM 286TC
SKU: HD30P2EC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
30 HP    1800 RPM       286TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
30 HP    1800 RPM       286TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
Voltage 230/460
Service Factor 1.15
"C" Dim (inches) 27.5
Ship Wt. 360
NEMA Nom. Eff 93.6
Full Load Amps 70/35
SYN RPM 1800
HP 30
NEMA Frame 286TC
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Voltage 230/460
Service Factor 1.15
"C" Dim (inches) 27.5
Ship Wt. 360
NEMA Nom. Eff 93.6
Full Load Amps 70/35
SYN RPM 1800
HP 30
NEMA Frame 286TC
