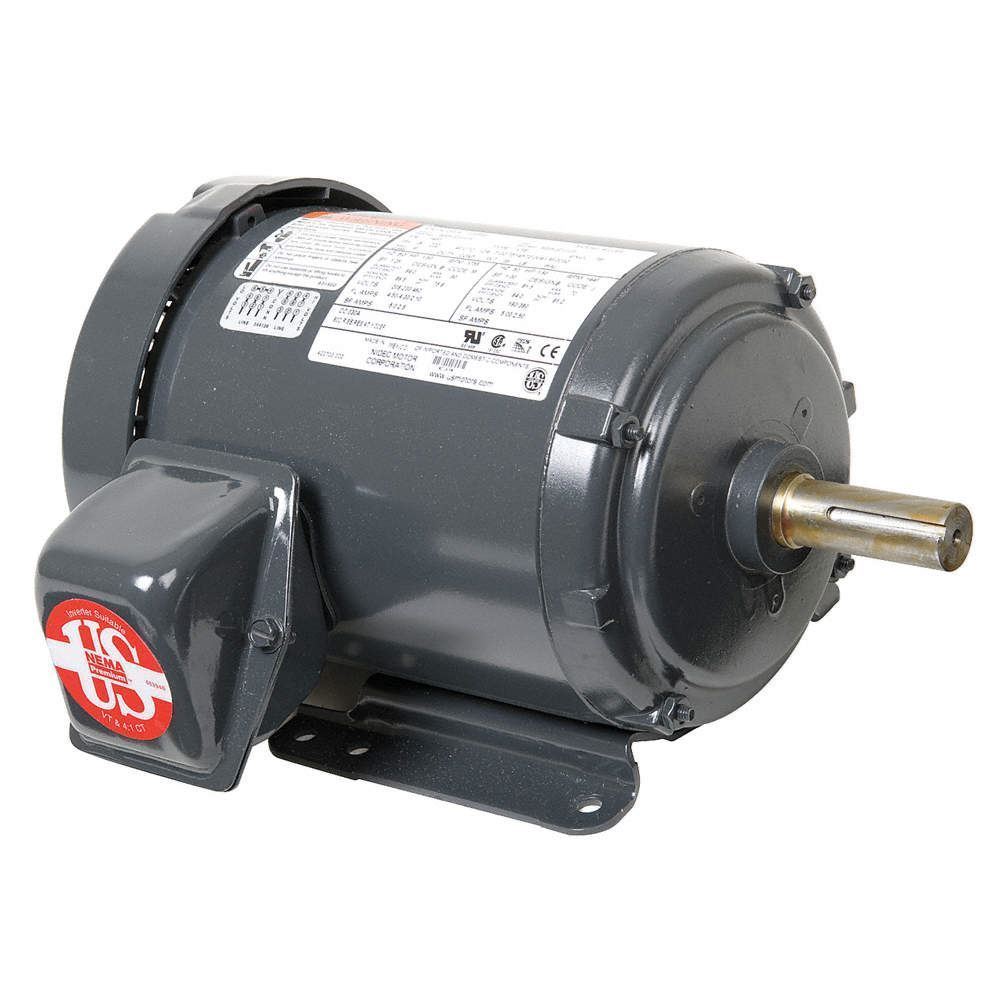

THREE PHASE - TEFC - RIGID BASE 3/4 HP 1200 RPM 56H
SKU: T34S3AH
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

3/4 HP     1200 RPM    56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

3/4 HP     1200 RPM    56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 3/4
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 56H
"C" Dim (inches) 12.9
NEMA Nom. Eff 70.0
Ship Wt. 32
Full Load Amps 3.1-3.2/1.6
