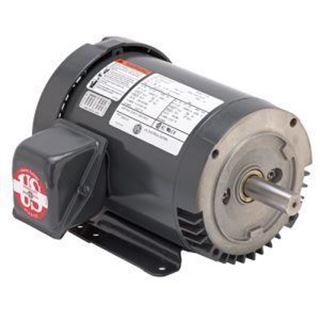

THREE PHASE - TEFC - C FACE (WITH FEET) 1/2 HP 1800 RPM 56C
SKU: U12S2AC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C FACE
General Purpose Motor

1/2 HP     1800 RPM    56C WITH FEET

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C FACE
General Purpose Motor

1/2 HP     1800 RPM    56C WITH FEET

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1/2
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
"C" Dim (inches) 10.8
Ship Wt. 26
NEMA Nom. Eff 74.0
Full Load Amps 1.8-1.8/0.9
