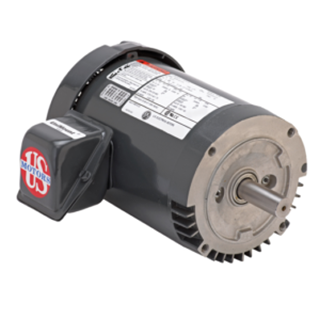

Three Phase - TEFC - C Face (No Feet) 1/3 HP 1800 RPM 56C
SKU: U13S2ACR
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face
General Purpose Motor

1/3 HP     1800 RPM    56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face
General Purpose Motor

1/3 HP     1800 RPM    56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1/3
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
Ship Wt. 25
Full Load Amps 1.2-1.2/0.6
NEMA Nom. Eff 75.5
"C" Dim (inches) 10.8
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
HP 1/3
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
Ship Wt. 25
Full Load Amps 1.2-1.2/0.6
NEMA Nom. Eff 75.5
"C" Dim (inches) 10.8
