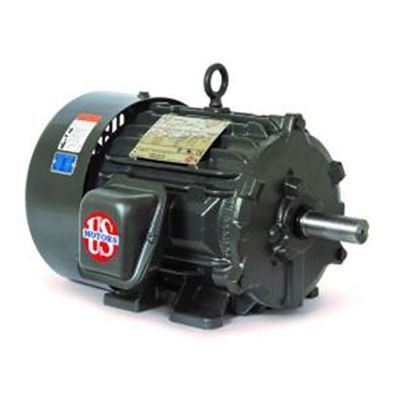

Three Phase - TEFC - Rigid Base 3 HP 3600 RPM 182T
SKU: HD3P1E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

3 HP     3600 RPM

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

3 HP     3600 RPM

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 3
SYN RPM 3600
Voltage 230/460
Service Factor 1.15
NEMA Frame 182T
Ship Wt. 70
NEMA Nom. Eff 86.5
Full Load Amps 8.2/4.1
"C" Dim (inches) 16.3
