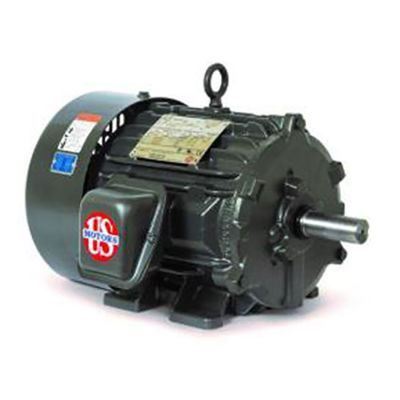

Three Phase - TEFC - Rigid Base 20 HP 1800 RPM 256T
SKU: HD20P2E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

20 HP      1800 RPM       256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

20 HP      1800 RPM       256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
NEMA Frame 256T
HP 20
"C" Dim (inches) 24.9
Ship Wt. 340
NEMA Nom. Eff 93.0
Full Load Amps 47/23.7
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
NEMA Frame 256T
HP 20
"C" Dim (inches) 24.9
Ship Wt. 340
NEMA Nom. Eff 93.0
Full Load Amps 47/23.7
