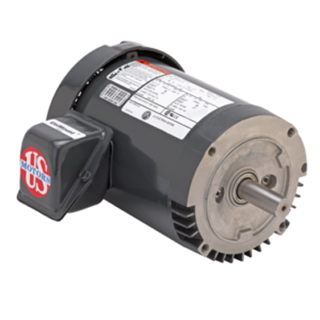

Three Phase - TEFC - C Face (no Feet) 1/3 HP 3600 RPM 56C
SKU: T13S1ACR
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face
General Purpose Motor

1/3 HP     3600 RPM    56C no feet

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face
General Purpose Motor

1/3 HP     3600 RPM    56C no feet

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1/3
SYN RPM 3600
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 56C
Ship Wt. 32
NEMA Nom. Eff 75.5
"C" Dim (inches) 10.8
Full Load Amps 1.7-1.8/0.9
