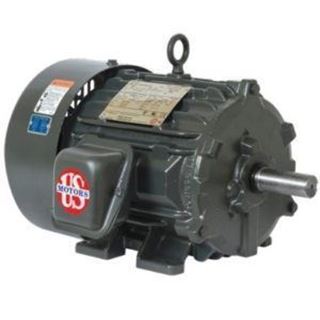

Three Phase - TEFC - Rigid Base 50 HP 1200 RPM 365T
SKU: HD50P3E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

50 HP      1200 RPM      365T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • 182T - 215T Models are rolled steel frame
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

50 HP      1200 RPM      365T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • 182T - 215T Models are rolled steel frame
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1200
Voltage 230/460
Service Factor 1.15
NEMA Frame 365T
HP 50
"C" Dim (inches) 32.3
Ship Wt. 680
NEMA Nom. Eff 94.1
Full Load Amps 117/59
