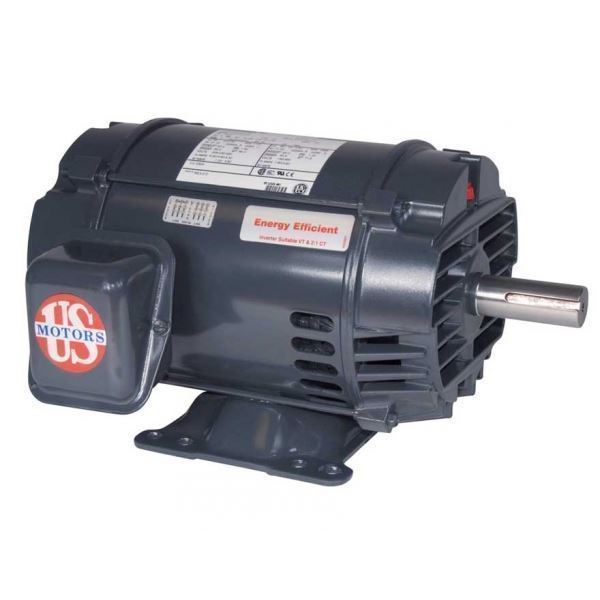

Three Phase - ODP - Rigid Base 20 HP 3600 RPM 254T
SKU: D20P1D
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

20 HP      3600 RPM     254T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

20 HP      3600 RPM     254T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 3600
Voltage 208-230/460
Service Factor 1.15
Ship Wt. 300
NEMA Nom. Eff 91.7
NEMA Frame 254T
HP 20
"C" Dim (inches) 22.6
Full Load Amps 52-46/23.1
