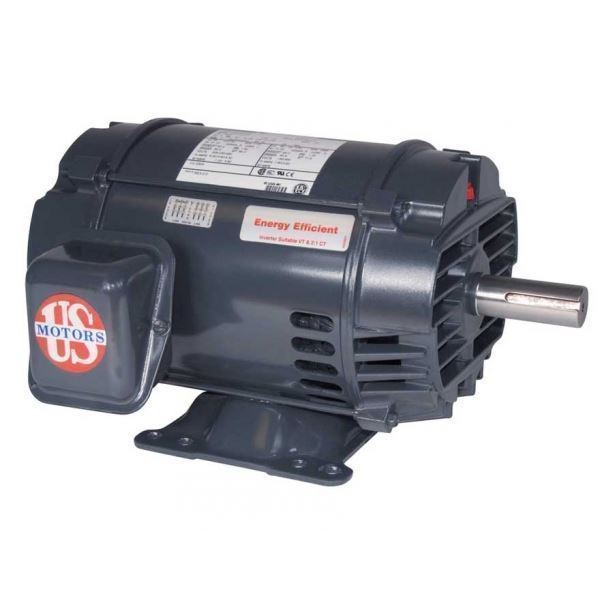

Three Phase - ODP - Rigid Base 20 HP 1800 RPM 256T
SKU: D20P2D
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

20 HP      1800 RPM     256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Open Drip-Proof - Rigid Base
General Purpose Motor

20 HP      1800 RPM     256T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.15
Ship Wt. 160
NEMA Nom. Eff 93.0
NEMA Frame 256T
HP 20
"C" Dim (inches) 23.2
Full Load Amps 52-47/23.6
