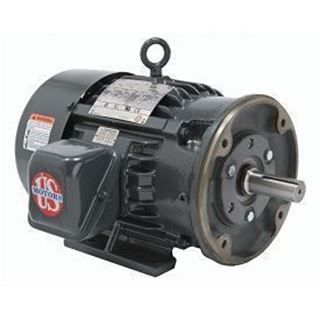

Three Phase - TEFC - C Face with Base 10 HP 1800 RPM 215TC
SKU: HD10P2EC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
10 HP    1800 RPM       215TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
10 HP    1800 RPM       215TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 215TC
"C" Dim (inches) 20.4
Ship Wt. 180
NEMA Nom. Eff 91.7
Full Load Amps 25.7/12.8
SYN RPM 1800
HP 10
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 215TC
"C" Dim (inches) 20.4
Ship Wt. 180
NEMA Nom. Eff 91.7
Full Load Amps 25.7/12.8
SYN RPM 1800
HP 10
