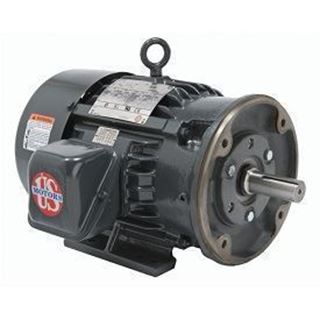

Three Phase - TEFC - C Face with Base 15 HP 1200 RPM 284TC
SKU: HD15P3EC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
15 HP    1200 RPM       284TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
15 HP    1200 RPM       284TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 284TC
"C" Dim (inches) 27.5
Ship Wt. 330
NEMA Nom. Eff 91.7
Full Load Amps 37/18.5
SYN RPM 1200
HP 15
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Voltage 230/460
Service Factor 1.15
NEMA Frame 284TC
"C" Dim (inches) 27.5
Ship Wt. 330
NEMA Nom. Eff 91.7
Full Load Amps 37/18.5
SYN RPM 1200
HP 15
