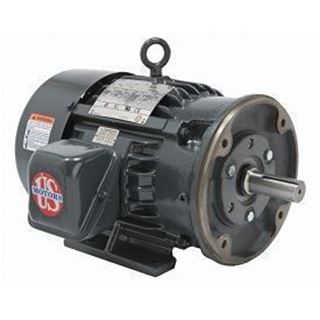

Three Phase - TEFC - C Face with Base 5 HP 3600 RPM 184TC
SKU: HD5P1EC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
5 HP    3600 RPM       184TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C Face with Base
5 HP    3600 RPM       184TC

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 5
SYN RPM 3600
Voltage 230/460
Service Factor 1.15
NEMA Frame 184TC
"C" Dim (inches) 17.1
Ship Wt. 90
NEMA Nom. Eff 88.5
Full Load Amps 12.3/6.1
