*Images may not represent actual products.

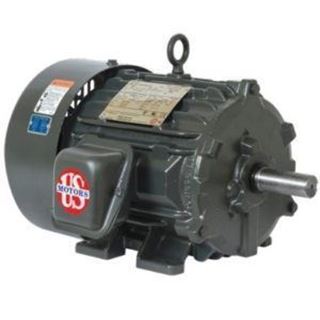

THREE PHASE - TEFC - RIGID BASE 1 HP 1800 RPM 143T
SKU: HD1P2E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

1 HP     1800 RPM    143T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

1 HP     1800 RPM    143T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1
SYN RPM 1800
Voltage 230/460
Service Factor 1.25
NEMA Frame 143T
"C" Dim (inches) 13.5
Ship Wt. 60
NEMA Nom. Eff 85.5
Full Load Amps 3/1.5
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
HP 1
SYN RPM 1800
Voltage 230/460
Service Factor 1.25
NEMA Frame 143T
"C" Dim (inches) 13.5
Ship Wt. 60
NEMA Nom. Eff 85.5
Full Load Amps 3/1.5
