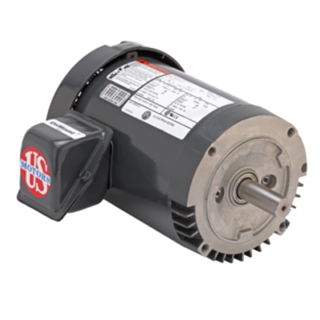

THREE PHASE - TEFC - C FACE (NO FEET) 1/2 HP 3600 RPM 56C
SKU: T12S1ACR
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C FACE
General Purpose Motor

1/2 HP     3600 RPM    56C NO FEET

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C FACE
General Purpose Motor

1/2 HP     3600 RPM    56C NO FEET

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1/2
SYN RPM 3600
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
"C" Dim (inches) 10.9
Ship Wt. 32
NEMA Nom. Eff 64.0
Full Load Amps 2.18-2.18/1.09
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
HP 1/2
SYN RPM 3600
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
"C" Dim (inches) 10.9
Ship Wt. 32
NEMA Nom. Eff 64.0
Full Load Amps 2.18-2.18/1.09
