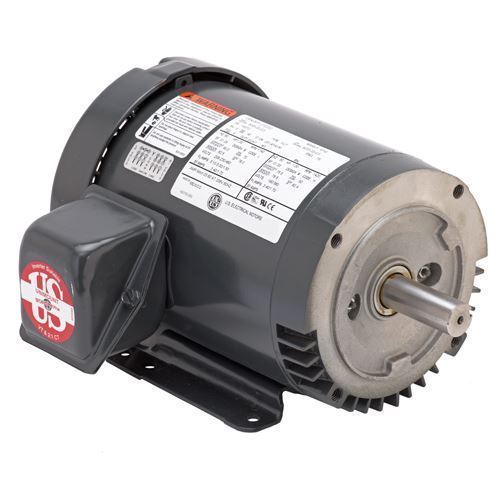

THREE PHASE - TEFC - C FACE WITH BASE 1-1/2 HP 3600 RPM 56C
SKU: U32P1DFC
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C FACE WITH BASE
General Purpose Motor

1-1/2 HP     3600 RPM    56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C FACE WITH BASE
General Purpose Motor

1-1/2 HP     3600 RPM    56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 3600
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56C
"C" Dim (inches) 13.1
Ship Wt. 30
NEMA Nom. Eff 84.0
Full Load Amps 4.2-3.9/1.9
HP 1 1/2
