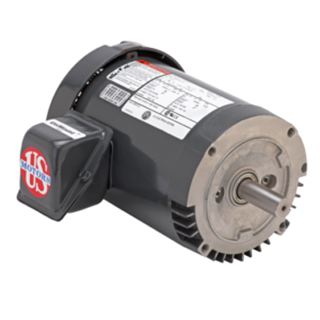

THREE PHASE - TEFC - C FACE (NO BASE) 3/4 HP 1200 RPM 56C
SKU: U34S3ACR
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - C FACE (NO BASE)
General Purpose Motor

3/4 HP     1200 RPM       56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - C FACE (NO BASE)
General Purpose Motor

3/4 HP     1200 RPM       56C

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 3/4
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 56C
Full Load Amps 3.1-3.2/1.6
NEMA Nom. Eff 81.5
Ship Wt. 32
"C" Dim (inches) 12.8
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
HP 3/4
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.15
NEMA Frame 56C
Full Load Amps 3.1-3.2/1.6
NEMA Nom. Eff 81.5
Ship Wt. 32
"C" Dim (inches) 12.8
