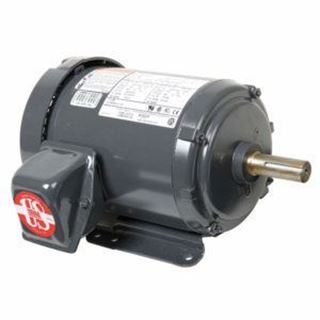

Three Phase - TEFC - Rigid Base 2 HP 1800 RPM 145T
SKU: U2P2D
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base General Purpose Motor
2 HP    1800 RPM       145T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base General Purpose Motor
2 HP    1800 RPM       145T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 2
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 145T
NEMA Nom. Eff 86.5
"C" Dim (inches) 13.0
Ship Wt. 35
Full Load Amps 5.9-5.7/2.8
