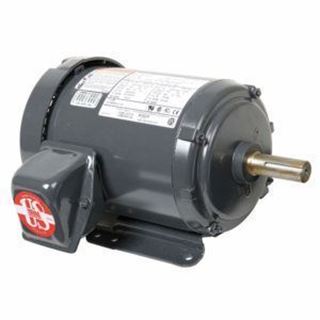

Three Phase - TEFC - Rigid Base 1 HP 1200 RPM 56H
SKU: U1P3DF
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base General Purpose Motor
1 HP    1200 RPM       56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base General Purpose Motor
1 HP    1200 RPM       56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56H
"C" Dim (inches) 12.6
Ship Wt. 30
NEMA Nom. Eff 82.5
Full Load Amps 3.6-3.5/1.8
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
HP 1
SYN RPM 1200
Voltage 208-230/460
Service Factor 1.25
NEMA Frame 56H
"C" Dim (inches) 12.6
Ship Wt. 30
NEMA Nom. Eff 82.5
Full Load Amps 3.6-3.5/1.8
