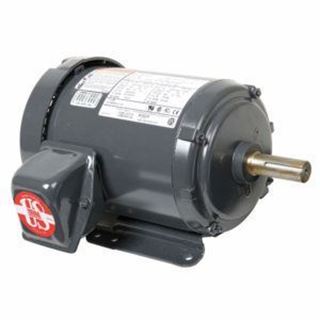

THREE PHASE - TEFC - RIGID BASE 1 HP 1800 RPM 56H
SKU: T1P2AH
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

1 HP     1800 RPM      56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

1 HP     1800 RPM      56H

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
HP 1
NEMA Frame 56H
SYN RPM 1800
Voltage 208-230/460
Service Factor 1.15
"C" Dim (inches) 12.9
Ship Wt. 36
NEMA Nom. Eff 85.5
Full Load Amps 3.3-3.2/1.5
