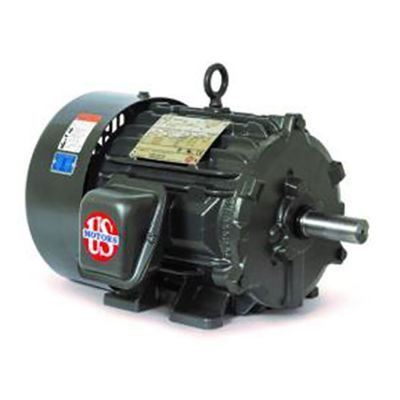

Three Phase - TEFC - Rigid Base 7 1/2 HP 1800 RPM 213T
SKU: HD7P2E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      1800 RPM      213T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      1800 RPM      213T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
HP 7 1/2
NEMA Frame 213T
"C" Dim (inches) 19.6
Ship Wt. 150
NEMA Nom. Eff 91.7
Full Load Amps 19.1/9.6
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
SYN RPM 1800
Voltage 230/460
Service Factor 1.15
HP 7 1/2
NEMA Frame 213T
"C" Dim (inches) 19.6
Ship Wt. 150
NEMA Nom. Eff 91.7
Full Load Amps 19.1/9.6
