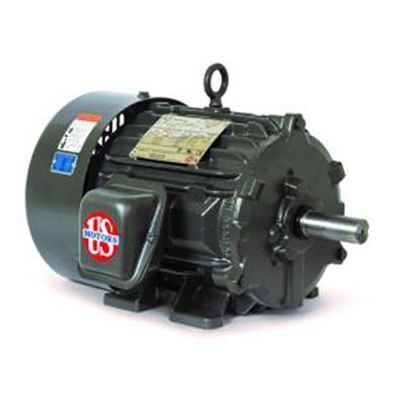

Three Phase - TEFC - Rigid Base 7 1/2 HP 1200 RPM 254T
SKU: HD7P3E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      1200 RPM       254T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      1200 RPM       254T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 1200
Voltage 230/460
Service Factor 1.15
HP 7 1/2
NEMA Frame 254T
"C" Dim (inches) 24.9
Ship Wt. 300
NEMA Nom. Eff 91.0
Full Load Amps 18.8/9.4
