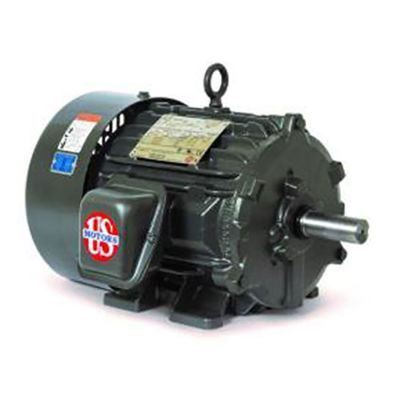

Three Phase - TEFC - Rigid Base 7 1/2 HP 3600 RPM 213T
SKU: HD7P1E
Manufacturer: US MOTORS
TAX EXEMPTION NOTICE:
If your busines is sales tax exempt, please contact us before you place your order so we can setup your account accordingly.
Call for pricing

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      3600 RPM      213T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark

Three Phase - Totally Enclosed Fan Cooled - Rigid Base
General Purpose Motor

7 1/2 HP      3600 RPM      213T

Features:

  • Meets or exceeds NEMA Premium efficiencies
  • Class F insulation
  • Standard assembly F1, reversible to F2 by reassembly
  • UL Recognized, CSA Certified, CE Mark
Products specifications
SYN RPM 3600
Voltage 230/460
Service Factor 1.15
HP 7 1/2
NEMA Frame 213T
"C" Dim (inches) 19.6
Ship Wt. 130
NEMA Nom. Eff 89.5
Full Load Amps 18.1/9
